Ecoblue Gas Products is an authorised service agent of Paloma products.
Paloma offers:
- 20lt exterior
- 26lt Ecomax exterior
- 27lt interior
The Paloma gas geysers can use an electric controller to adjust your water temperature & automatically dispense your bath to your desired level.
These Turbofan Geysers use a maximum of 67W at 240V whilst operating (That's less than 1 energy saving light-bulb), & 4W in standby.
Model | PH-20 External | PH-26 EcoMax External | PH-27 Internal |
|---|---|---|---|
Capacity Rating | 20ℓ/m @ 25°C | 26ℓ/m @ 25°C | 27ℓ/m @ 25°C |
Gas Consumption (min/max) | LPG: 0.4/3.1 kgh NG: 21/153 Mjh | LPG: 0.3/3.9 kgh NG: 12/199 Mjh | LPG: 0.3/4.1 kgh NG: 19/205 Mjh |
Electricity Consumption (w) | 61W @ 240V | 59W @ 240V | 67W @ 240V |
Dimensions (HxWxD) (mm) | 520 x 350 x 150 | 530 x 350 x 194 | 600 x 350 x 215 |
Weight (kg) | 17 | 17 | 24 |
Anti-frost | Y | Y | Y |
Flow Rate(min/max) (?/m) | 2.5 - 20 | 1.5 - 32 | 2.0 - 33 |
Minimum Activation Water Pressure | 80 kPa | 80 kPa | 10 kPa |
Minimum Full Flow Water Pressure | 140 kPa | 140 kPa | 140 kPa |
Maximum Water Pressure Input | 1000 kPa | 1000 kPa | 1000 kPa |
Solar Boost Ready | Y | Y | Y |
Gas & Water Connections | 3/4" or 20mm | 3/4" or 20mm | 3/4" or 20mm |
Min Temperature | 37 °C | 37 °C | 37 °C |
Max Temperature | 70 °C | 75 °C | 82 °C |
Max Temperature with Controller | Kitchen: 60 °C Bathroom: 50 °C | Kitchen: 60 °C Bathroom: 50 °C | Kitchen: 60 °C Bathroom: 50 °C |
E-Z Link (2 units with electronic manifold) | Y | Y | Y |
Application | Domestic only | Domestic & Commercial | Domestic & Commercial |
Heat Exchanger: 10 years
Water/Gas Components: 3 Years
Electrical:1 Year
WARRANTY
Paloma Gas Geysers
Specifications
Rinnai produces over 12 million gas appliances every year, which are
distributed to all parts of the world.
Backed by extensive warranties and
fully qualified after-sales teams, Rinnai is proud to be the No.1 choice for gas water heating systems world wide. They offer solutions to fulfill any requirement. Their products also support existing alternate water heating systems.
Rinnai uses innovative manufacturing
and testing techniques resulting in
uncontested levels of safety, comfort
and efficiency. By heating only the
water you require as you need it, you
are assured of never running out of
stored, hot water.
Model | Infinity 20 | Infinity 26 Internal | Infinity 26 External | Infinity 32 |
|---|---|---|---|---|
Connection Sizes (mm / inches) | 20 / 3/4" | 20 / 3/4" | 20 / 3/4" | 20 / 3/4" |
Gas Consumption (MJ/h) | 160 | 199 | 199 | |
Weight (kg) | 15 | 21 | 16 | |
Controllers | Y | Y | Y | Y |
Gas Type | LPG / NG | LPG / NG | LPG / NG | LPG / NG |
Water Pressure (min / max) (kPa) | 120 / 1000 | 190 / 1000 kPa | 150 kPa | 180 kPa |
Max Input | 45 kW | 54 kW | 55 kW | 70 kW |
Application | Domestic Only | Domestic & Commercial | Domestic & Commercial | Domestic & Commercial |
Suitablilty | 2 baths | 2+ baths | 2+ baths | 2+ baths |
Capacity Rating | 2.4 - 20 ℓ/m | 2.4 - 26 ℓ/m | 2.4 - 26 ℓ/m | 2.4 - 32 ℓ/m |
Dimensions (HxWxD) (mm) | 530 x 350 x 194 | 600 x 350 x 235 | 530 x 350 x 194 | 600 x 350 x 224 |
Rinnai Gas Geyser Specs
Heat Exchanger: 3 years
Mechanical Components: 1 Year
Electrical: None
WARRANTY
3 cups
Blueberries
3 cups
Flour
1 cup
Sugar
1½ cups
Butter
Wireless
Controller
Deluxe Bathroom
Controller
Deluxe Bathroom
Controller
Universal
Controller
Rinnai Gas Geysers
To experience all the benefits of Continuous Flow hot water systems, Rinnaistrongly recommends installing Water Controllers with all models. Rinnai's Controllers enable you to simply set your derired temperature, turn on the hot tap and and enjoy... no more juggling the hot and cold taps and of course this also saves water.
1 year General Warranty
WARRANTY

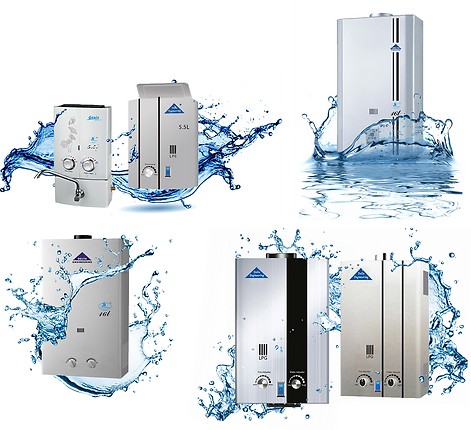

Delta Gas Geysers
NEW
Contact us for more information on these exciting new products.
WARRANTY
1 year General Warranty
Atlas Gas Geysers
The Atlas Grey Series Gas Geyser is the updated version of the standard Atlas Gas Geyser. It features a reduced carbon footprint, instant pulse ignition and an energy saving of up to 60%.
The Atlas Turbofan Gas Geyser uses a complimentary controller which has a microprocessor. This allows the user to auto adjust the water temperature and use self diagnostics to easily understand any error codes. The built in turbofan increases the combustion efficiency.
